Elyarchi Alcheman FDM 3D Printer

Ultra-High Detail Reproduction

Automatic Calibration and Mesh Bed

Compensation

Integrated Curated Online Model Library

Supports High Hardness, Impact-Resistant,

Deformation-Resistant Filaments

Reliable and Flexible Structure

Triple Protection Against Microparticle Threats

Time-Lapse Photography

and Selective Part Skipping

Five-color Printing: Hide Not Your Colors

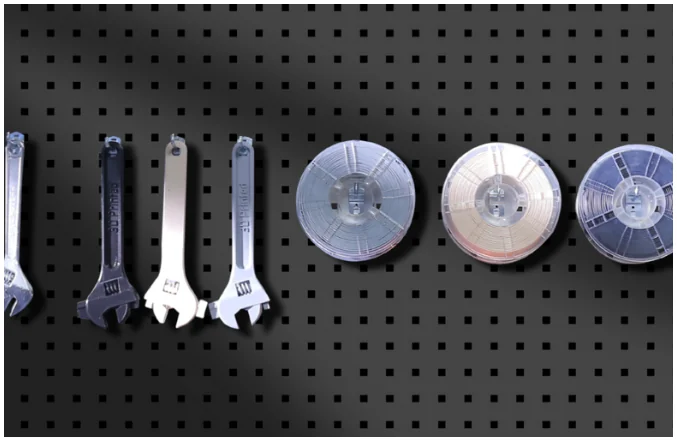

Materials Unlocked, Creativity Unbounded

Equip your various imaginations with ideal materials.

PEEK

PEI

PPS

PEEK (Polyetheretherketone) is a lightweight, high-performance polymer that is distinguishing itself in the field of lightweight and durable component manufacturing due to its exceptional mechanical properties, thermal stability, and chemical compatibility.

PC(Polycarbonate), also known as “bulletproof plastic,” exhibits exceptional impact resistance and good heat resistance. It is frequently utilized in products like face shields, automobile lighting, and model airplanes.

PEI(Polyetherimide) offers excellent mechanical, thermal, and electrical properties and is widely used in fields such as semiconductors, electronic devices, and communication equipment applications.

PA(Polyamide) is a well-balanced and versatile engineering polymer. As a true all-rounder, it is an ideal choice for replacing metal or rubber components in a variety of applications.

PPS(Polyphenylene Sulfide) fiber-reinforced is a polymer with multiple high resistances, making it an excellent material for protective gear, cover plates, or surface-mounted components.

Perfectly Print Functional Filaments That Truly Match Your creative Vision

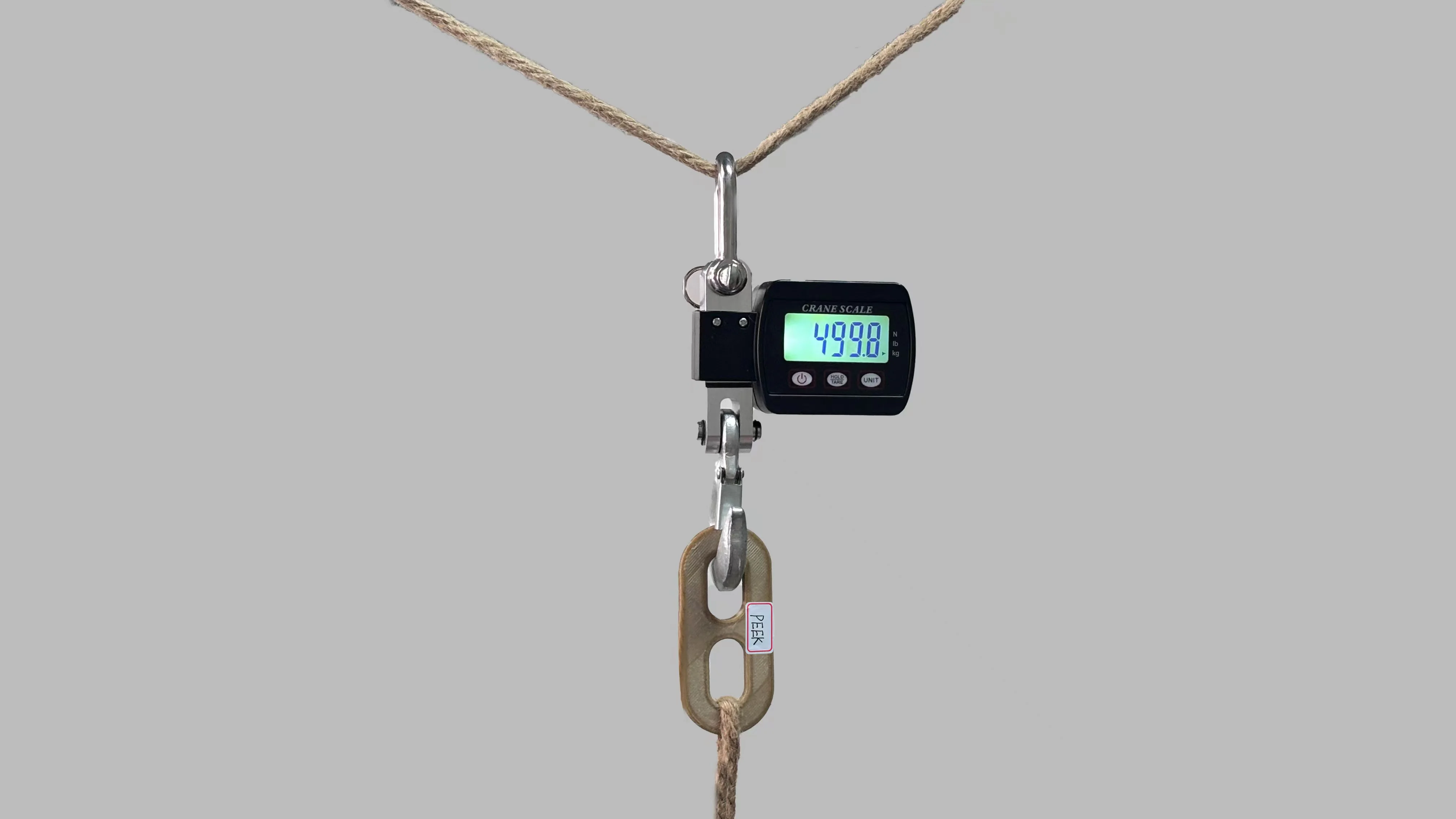

Stably outputs Strong and Durable Masterpieces

Alcheman uses configuration parameters derived from thousands of hours of testing by expertsand and users across various vertical fields, masterfully handling a wide range of materials.

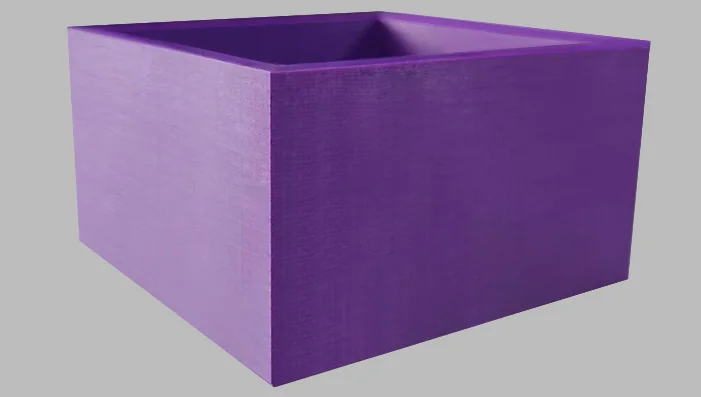

Each Layer Precisely Combined, Achieving Exceptional Surface Quality.

Generates Stronger Layer Adhesion, Enhancing the Mechanical Properties of the Finished Product.

Avoids Common Warping and Eliminates Frustrating Failures.

Stand out with Alcheman

PEEK
PPS
PEI
ABS
PA
PC

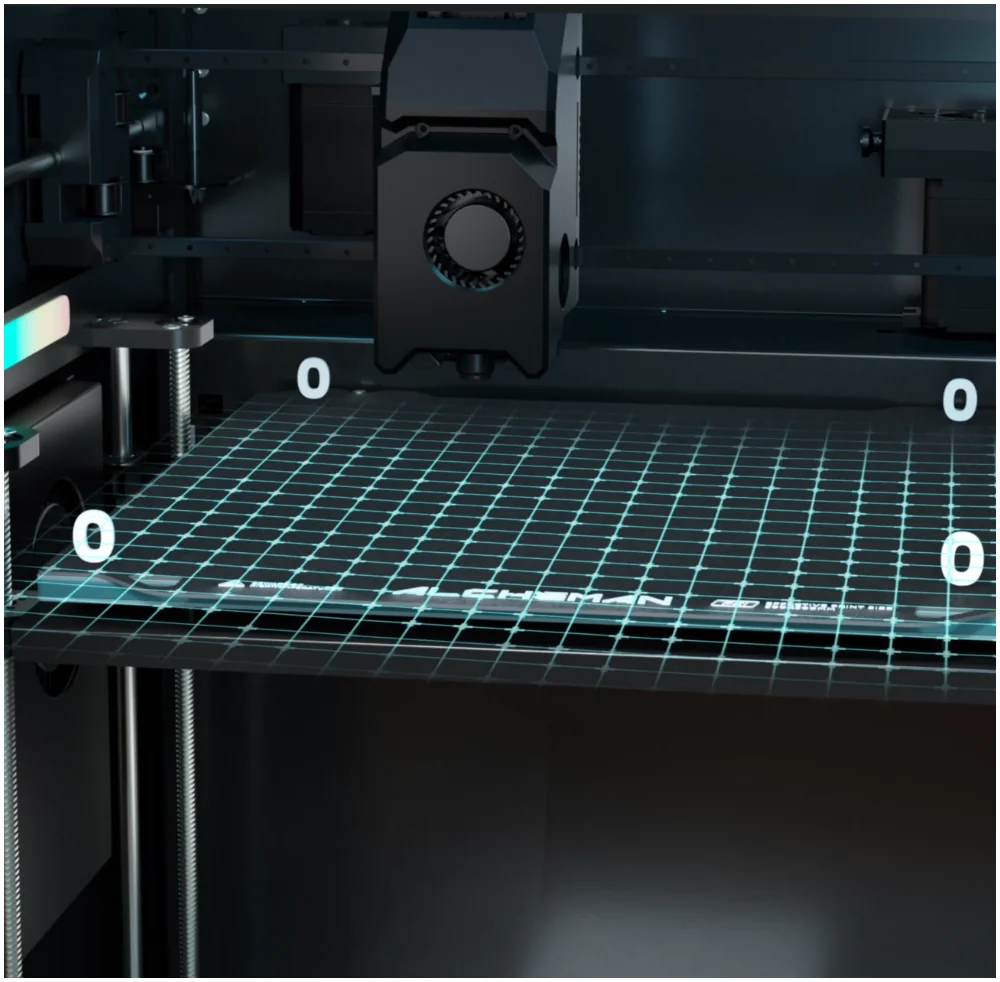

Automatically Achieves Beautiful Printing on the First Layer

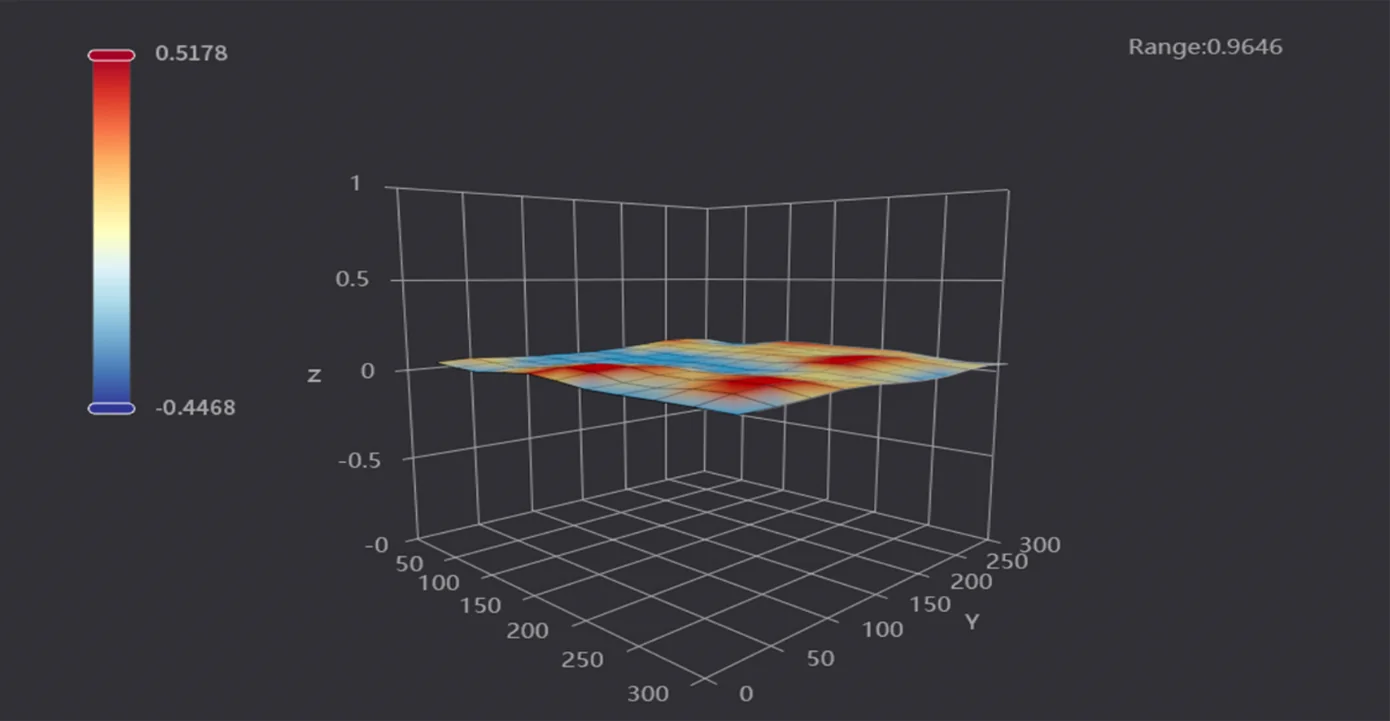

The thermal expansion of the build plate often results in slight but print quality-impacting deformation, which Alcheman accurately detects and Algorithmically compensates for dynamically.

Automatic Calibration, Hands-Free Operation

The intelligent electromagnetic induction sensor automates Z-axis Tilt Calibration with micron-level precision, ensuring absolute accuracy and reliability for every operation.

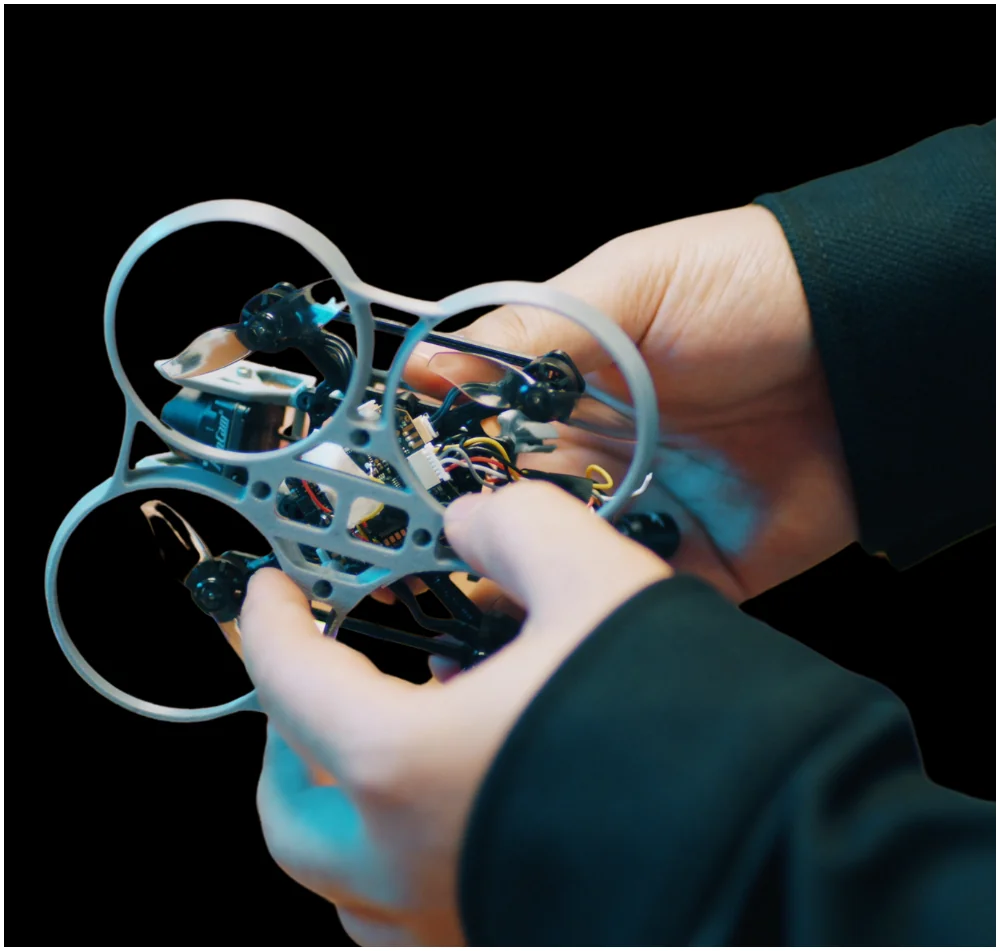

Maximizing Your 3D Printing Creativity

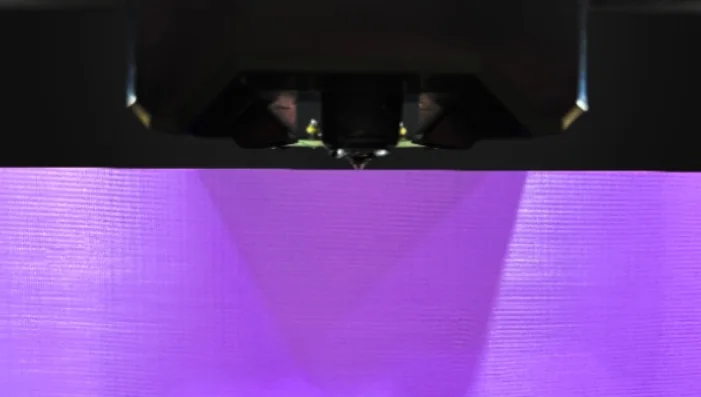

Our powerful algorithms, developed and tested over time, enable Alcheman to perfectly reproduce complex details.

Applying fluid dynamics and flow calibration algorithms, it proactively compensates for material

flow rates in response to motion inertia.

Equipped with a vibration input shaping algorithm that

automatically and precisely calibrates the resonance

frequencies of the X and Y axes, ensuring every detail

of the print job is faithfully reproduced.

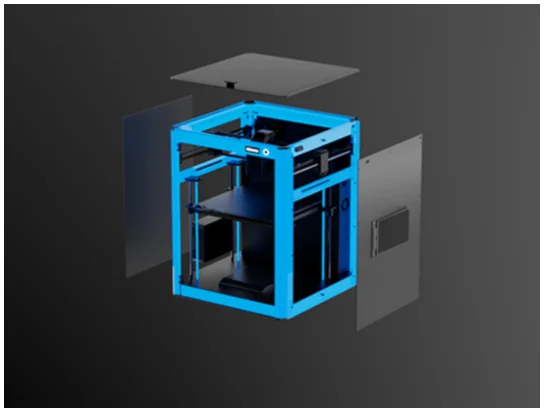

Consistent and Fast Every Time

A multi-tested and optimized all-metal body effectively resists flexing, enhancing multi-print consistency, model accuracy, and longevity. Lightweight and robust carbon fiber components reduce inertia and deformation, boosting print efficiency and accuracy.

Your Health, Our Priority

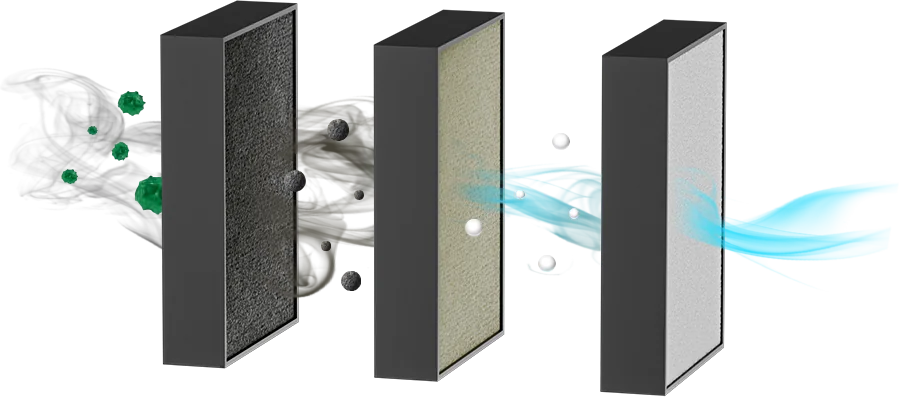

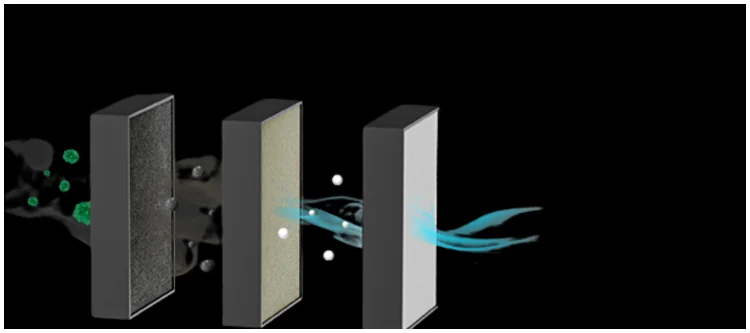

A professional-grade filter with triple protection of HEPA, Melt-blown nonwoven fabric and activated carbonis integrated in Alcheman. With the enclosed design, there is no need to worry about harmful fumes or strong odors.

Independently tested remove up to

93%

of different particles from every print.
Tested by Cti-cert, Only including Elyarchi materials*

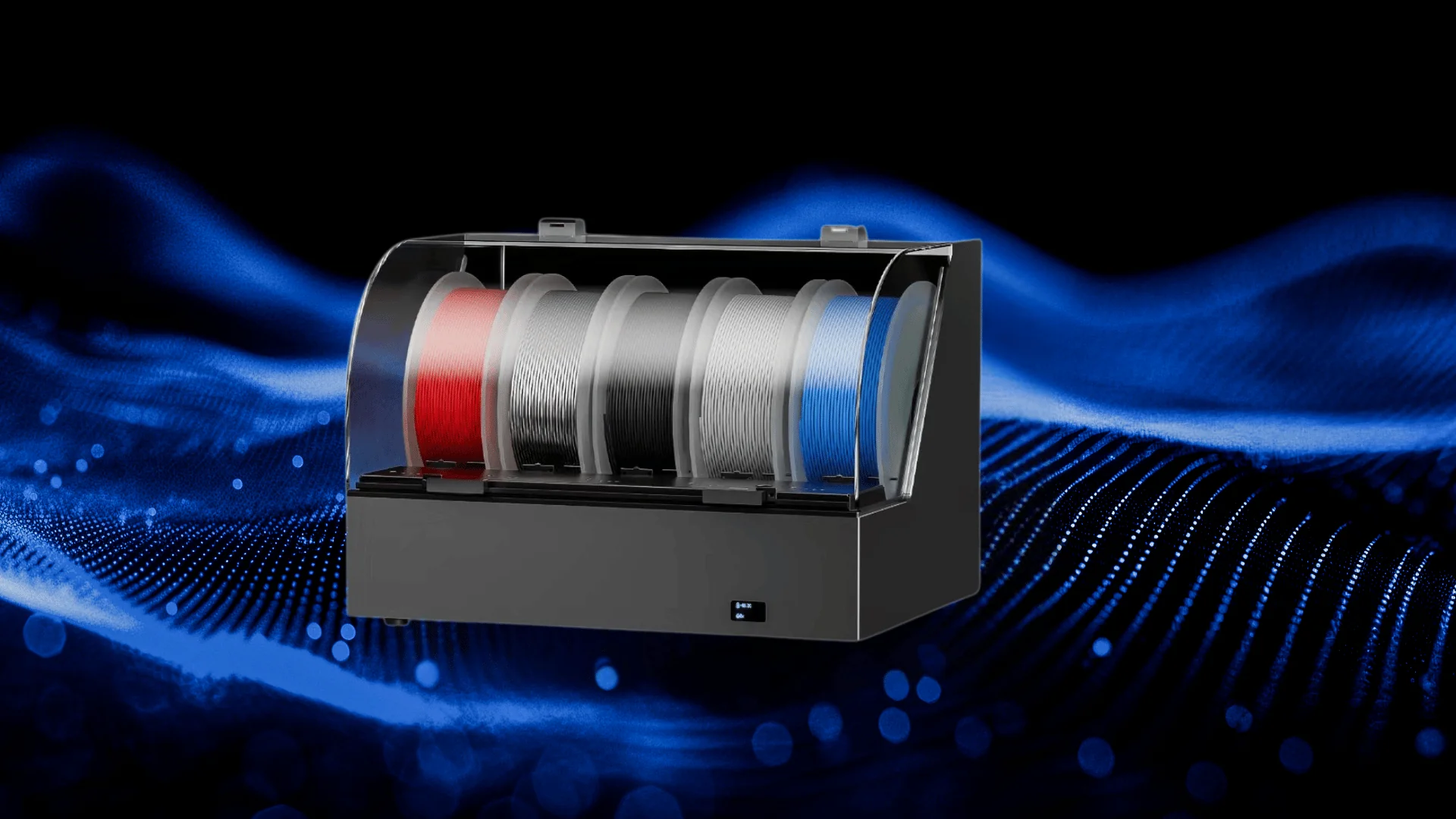

Hide Not Your Colors

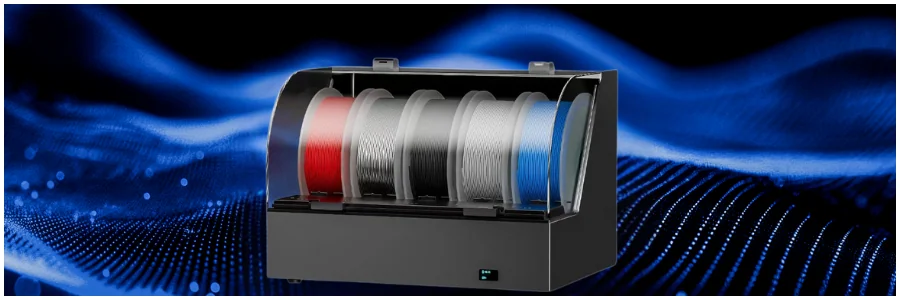

The intelligent system automatically identifies the material type and remaining amount, paired with a spare bin function that maintains the material's dryness. This ensures seamless and colorful creative expression without interruption. Featuring our “vooooo” five-color printing system, you can unleash your creativity in vibrant hues and turn your ideas into stunning reality!

Expand Your Creative Horizons

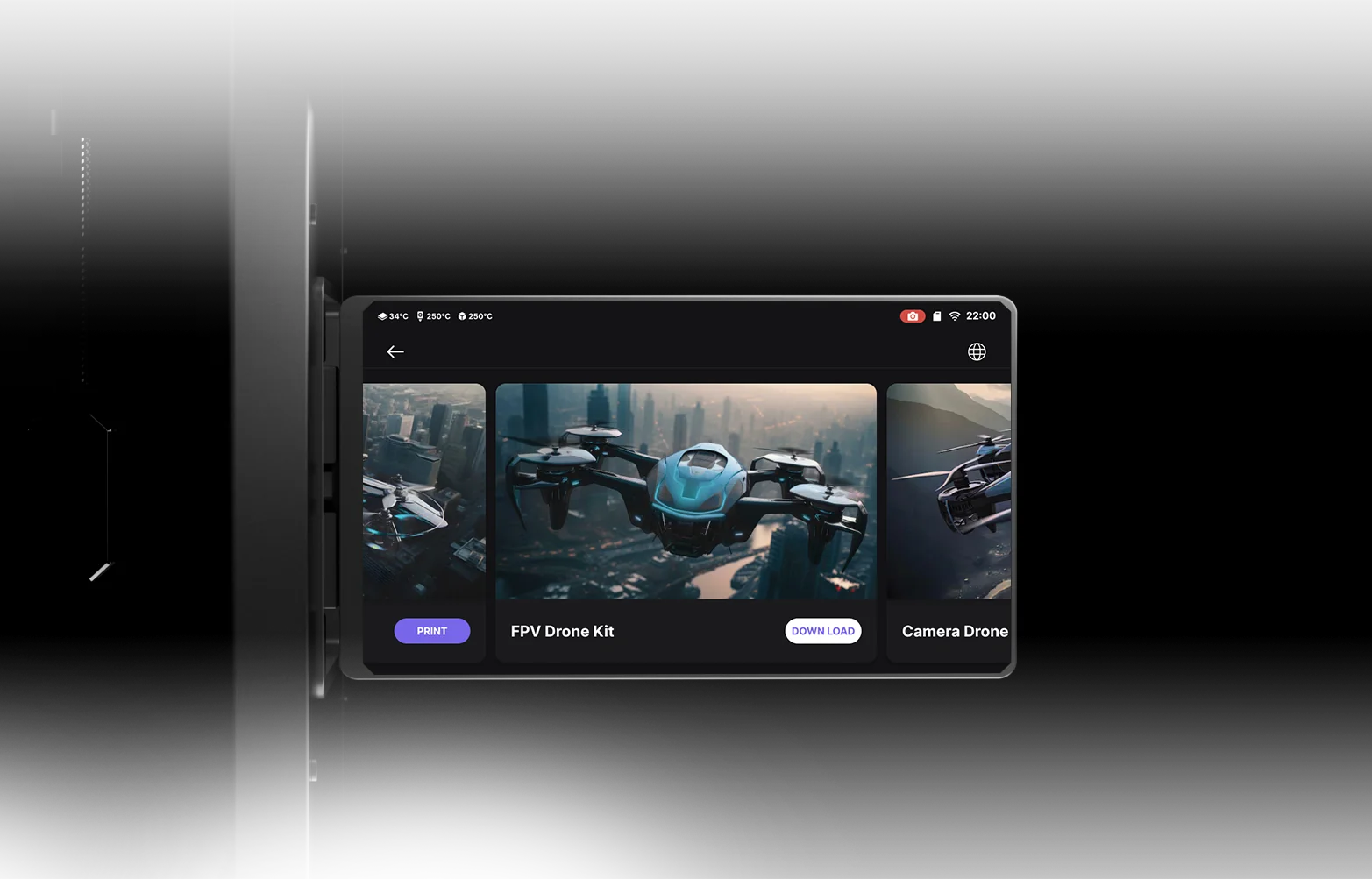

High-specification designed operator interface integrates a cloud-based model library, enabling a seamless transition from concept to reality, all at your fingertips.

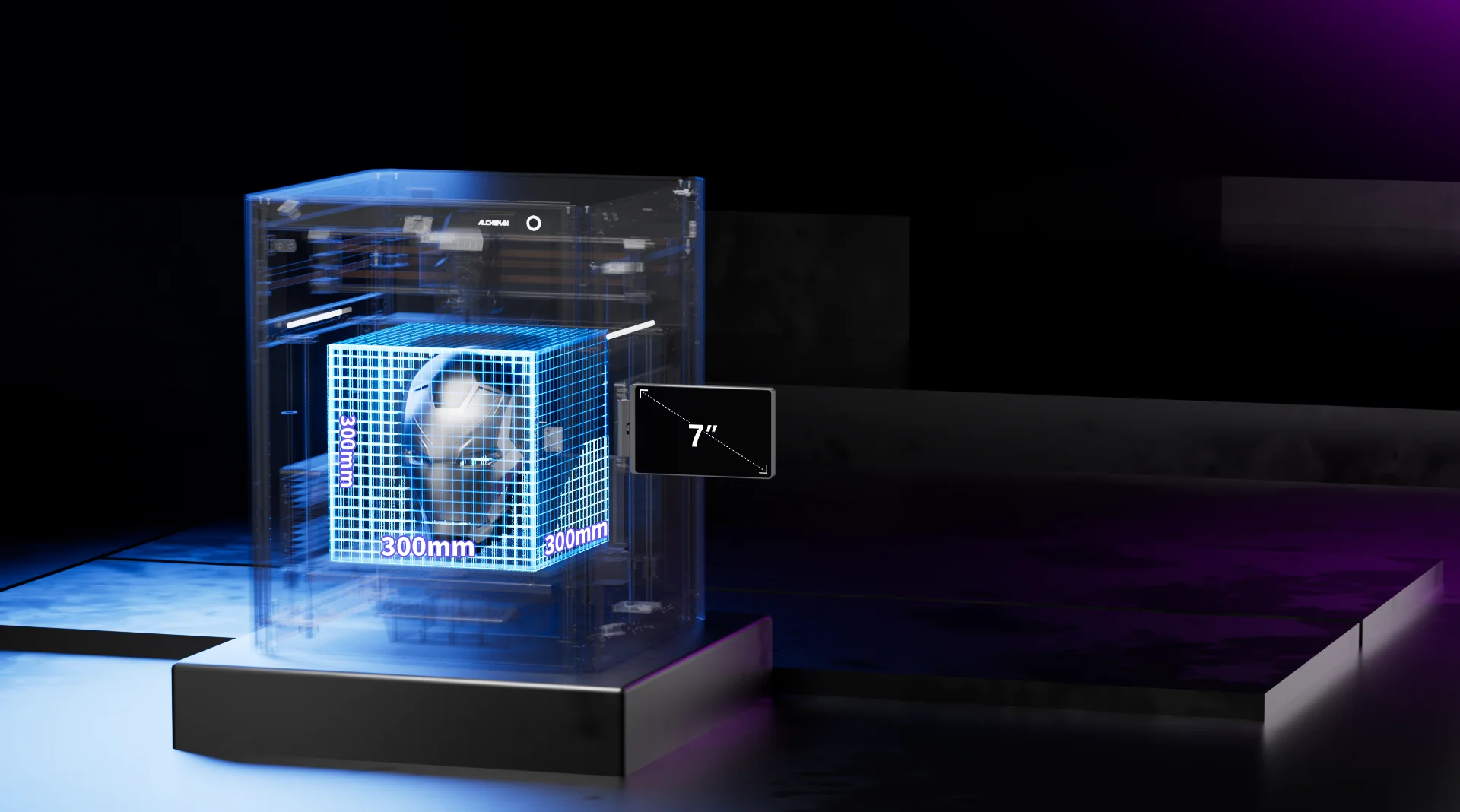

Toward the “Big Time”

More room to maneuver, easy printing without disassembling, and more robust all-in-one large models.

The 7-inch screen provides a richer browsing experience.

Uninterrupted Production, Eternal Creativity

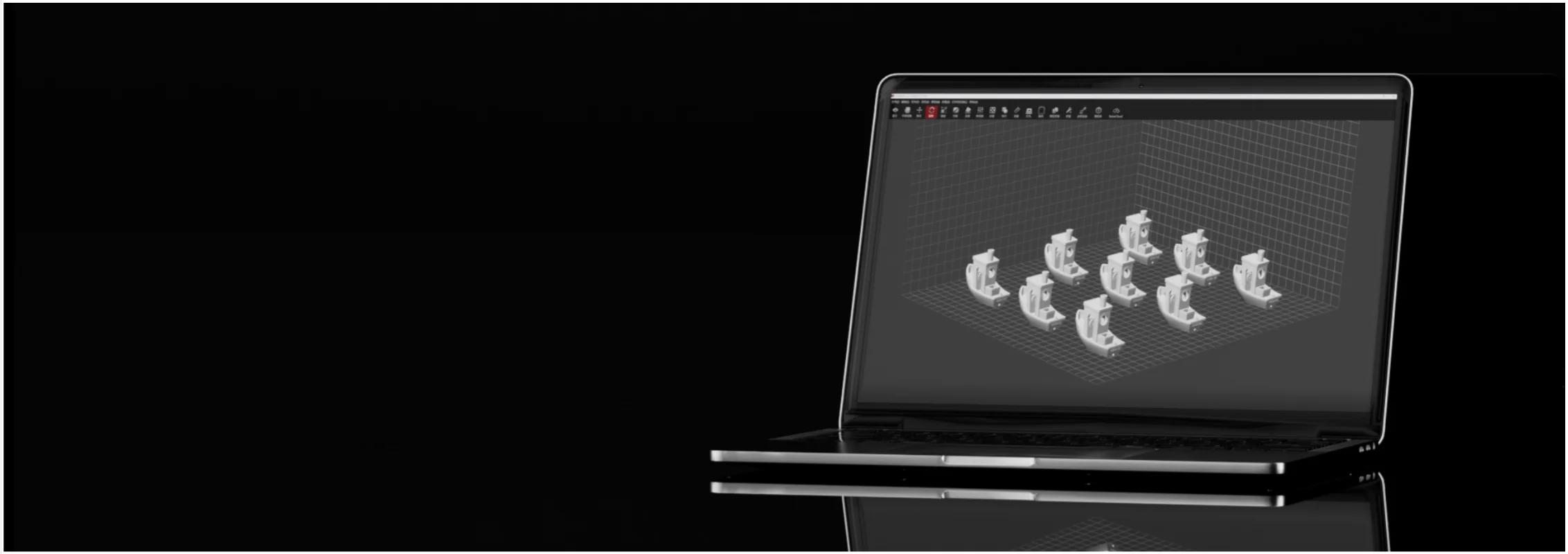

View or intervene in the progress of your work in real-time on the software and create vlogs with time-lapse photography.

Document the Entire Process of Your Creative Growth with Time-Lapse Photography.

Product Specifications

Components	Type	Parameter
Body	Build Volume	300x300x300mm
	Chassis	Steel
	Shell	Aviation Aluminum Alloy
Tool Head	Hot End	Ceramic
	Extruder Gears	Metal & Nylon
	Nozzle	Brass
	Max Hot End Temperature	430℃
	Nozzle Diameter (Included)	0.4mm
Hot Bed	Build Plate	Flexible Steel Plate
Supported Filament	-	• Industrial Grade: PEEK、PPS、PEI, etc. •Engineering Grade: PC、PA、ABS, etc. •General Purpose: PLA、PLA+、PETG、TPU, etc.
Supported Filament		General Purpose: PLA, ABS, PETG, PC, Nylon, TPU Engineering & Industrial Grade: PEEK, PPS, PEI, PA, PC
Speed	Max Speed of Tool Head	500mm/s
Speed	Max Acceleration of Tool Head	20000 mm/s²
Cavity Temperature Control	Active Chamber Temperature Control	√
Cavity Temperature Control	Maximum Controllable Chamber Temperature	90℃
Air Purification	Particulate Matter Filtration	√
Sensors	Temperature Sensor	√
	Acceleration Sensor	√
	Electromagnetic Sensor	√
	Pressure Sensor	√
Cooling	Part Cooling Fan	√
	Hot End Fan	√
	Control Board Fan	√
	Internal Circulation Fans	√
	Chamber Temperature Regulator Fan	√
	Air Filter	HEPA
Power Requirements	Voltage	18V
Power Requirements	Maximum Power	350W
Electronic Component	Display	7 Inches
Electronic Component	Storage	16GB
Wi-Fi	Frequency Range	2.4G/5G
Wi-Fi	Protocol	IEEE 802.11 b/g/n
Ethernet	Interface	RJ45
Ethernet	Speed	Gigabit
Physical Dimensions	Dimensions	450x450x562 mm
Physical Dimensions	Net Weight	29KG
